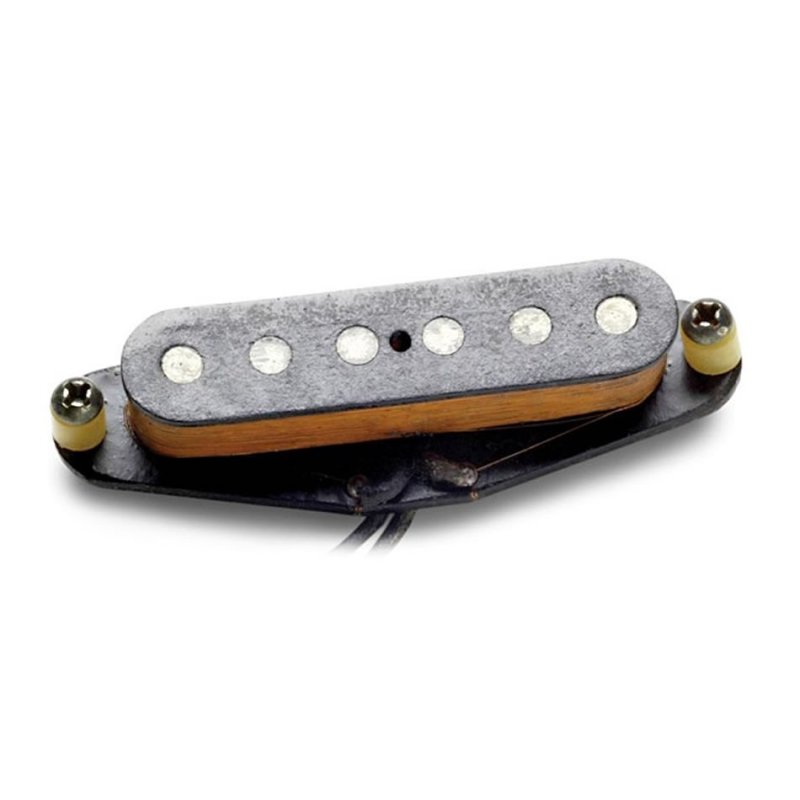

Seymour Duncan - Antiquity Fender Duo-Sonic® Guitar Bridge Pickup

The neck pickups are wound "top going" with a North magnetic polarity. The bridge pickups are wound "top coming" with a South magnetic polarity. When used in combination with each other, the two will be hum-canceling. The pole pieces are flush with the top and slightly protruding from the bottom. They are specially hand-wound and come with mounting screws. Hookup wire is the classic "push back" cloth braid wire.

• top pickup length: 2.642
• top pickup width: .615
• bottom pickup length: 3.392
• bottom pickup width: .908
• total pickup height: .582
• total magnet height: .625
• winding direction: top going (neck), top coming (bridge)
• magnet polarity: north (neck), south (bridge)
• calibrated yes
• height adjustment: 6/32 round head, phillips
• magnet pattern: flush with top, raised bottom
• DC Ohms: 6.3K
• Inductance: 2.2 henries
• Q: 2.2
