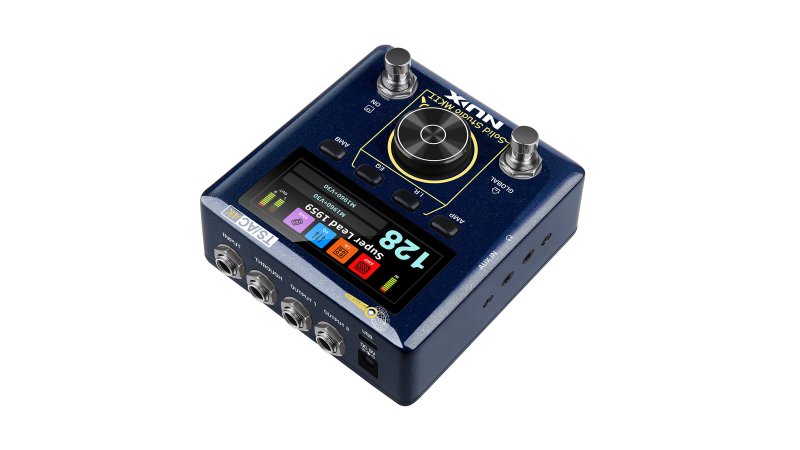

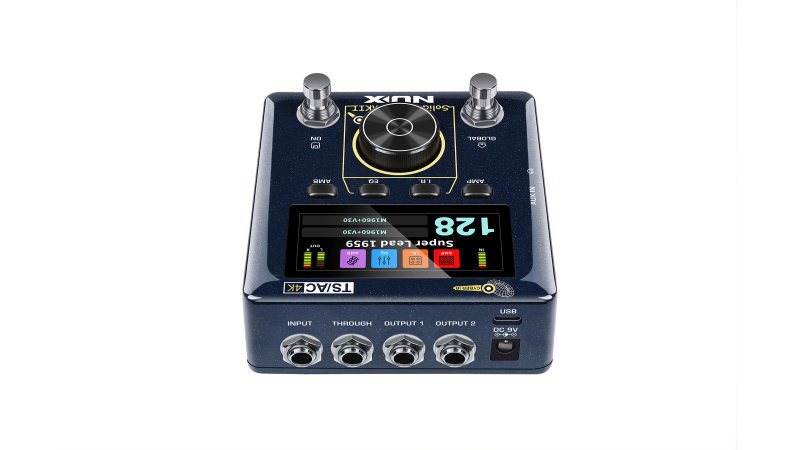

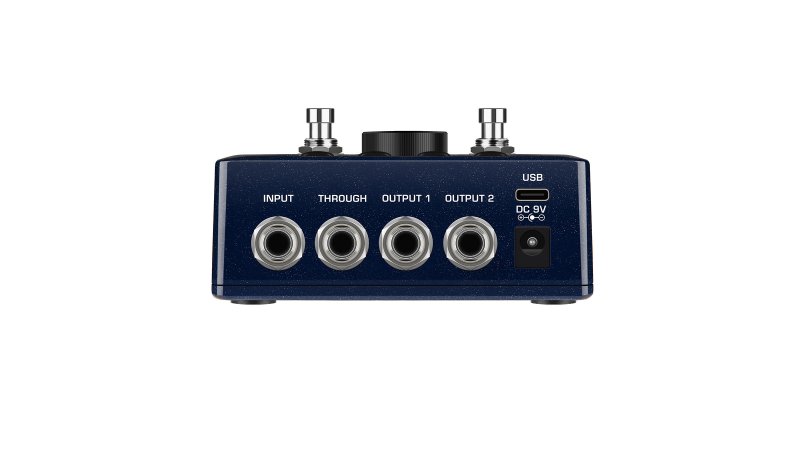

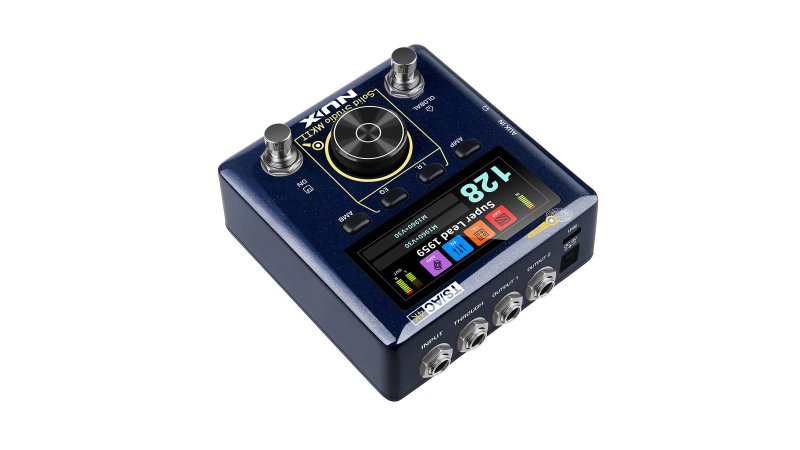

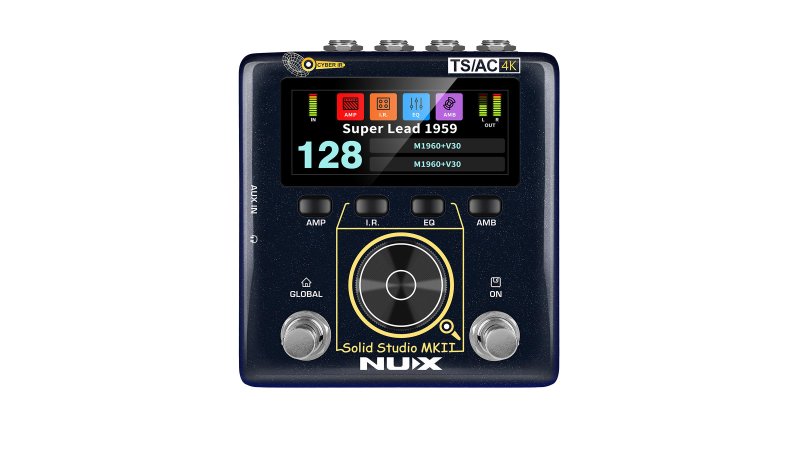

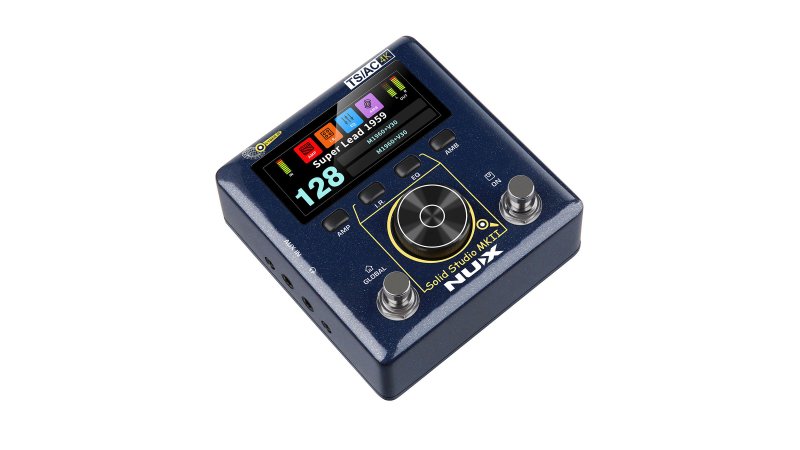

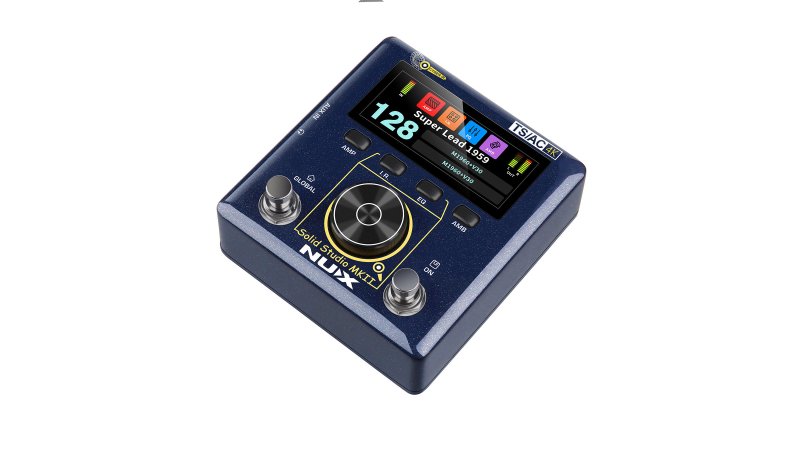

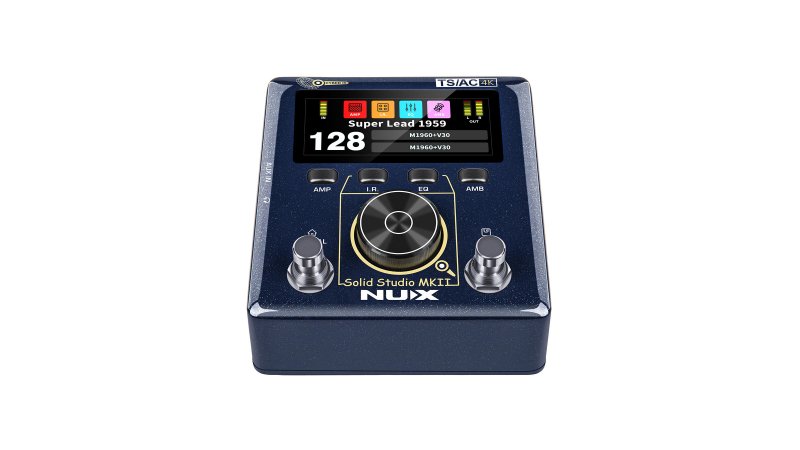

NUX - Solid Studio MKII Preamp Power Amp Simulator & IR Loader Pedal

<p>The Solid Studio MKII (NSS-6) has the most iconic Physical Amp Modeling algorithm: TSAC-4K with an independent Preamp and Power Amp combination. TSAC-4K (White-box) algorithm brings realistic playability and the tube amp's negative feedback response. This groundbreaking technology will offer you the best performance, and you can experience that ANALOG FEELING.</p>

<p>Our Brand New Cyber IR™ Technology is a real Impuse Response reproduction with a premium algorithm that offers Microphone, Position, and Distance tweaking. Solid Studio MKII gives you Stereo IR Capabilities with ultra-low latency. (Bypass: 0.85ms ; Efx Engaged: 1.9ms)</p>

<p>*NUX collaborated with CHOPTONES IRs.</p>

<p><strong>PEDAL PLATFORM: OVERDRIVE SIGNAL COMPATIBILITY</strong></p>

<p>The Solid Studio MKII is a great pedal-friendly platform for Amp-less applications. The unique TSAC-4K algorithm replicates the Tube Amp's response without unnatural compression. Its 110dB dynamic range and great headroom allow it to be used with most compressors and overdrive pedals.</p>

<p><strong>Recording, Re-Amping, OTG(On-The-Go)</strong></p>

<p><strong>Record DRY & Play Processed Sound simultaneously.</strong></p>

<p>As a modernmusician, recording ideas immediately is essential. The Solid Studio MKII'spremium A/D (TI PCM1840) and D/A (AKM AK4454VN) promises great sound quality. It's a good USB interface for recording your compositions.</p>

<p><strong>Features</strong></p>

<ul> <li>Stereo CYBER IR™ Engine with dual 1024 samples resolution.</li> <li>Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.</li> <li>World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping.</li> <li>Currently 8 classic AMP models.</li> <li>One-piece die-cast aluminum chassis.</li> <li>AMP, 1.R., EQ, AMB effect blocks with free routing order.</li> <li>2.86” color LCD display (960*376) with intuitive operations.</li> <li>128 preset slots, independent L/R 60 IR slots.</li> <li>BuiId-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.</li> <li>NORMAL, INJECT input modes. (lNJECT to parallel the power amp signal.)</li> <li>USB audio interface, firmware update, SOLlD STUDl0 editor™ edit software.</li> <li>USB-C MIDl, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with</li> <li>GND lift, Phones Out for silent practice.</li> <li>Great Dynamic Range: 110dB</li> <li>Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged)</li> </ul>

<p><strong>Specifications</strong></p>

<ul> <li>INPUT Impedance: 1MΩ</li> <li>AUX IN Impedance: 10kΩ</li> <li>OUTPUT 1, OUTPUT 2 Impedance: 100Ω</li> <li>Phone Impedance: 10Ω</li> <li>Dynamic Range: 110dB</li> <li>Sampling Rate: 48kHz/32bit</li> <li>System Latency: 0.85ms (Bypass) ; 1.9ms (Effect On)</li> <li>Power: 9V DC (Negative Tip)</li> <li>Current Draw: < 600mA</li> <li>Dimensions: 105mm(L)x115mm(W)x58(H)mm</li> <li>Weight: 450g</li> </ul>
