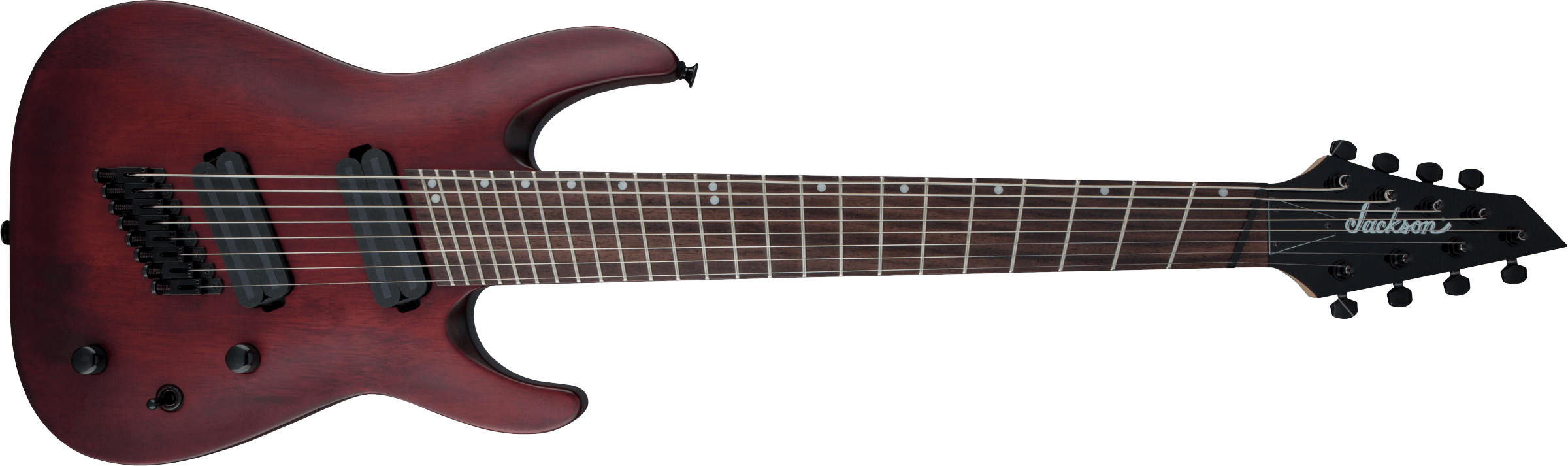

Jackson - X Series Dinky® Arch Top DKAF8 MS - Stained Mahogany
Shred in ergonomic comfort and style with the Jackson® X Series Dinky® Arch Top DKAF8 MS. A high-performance evolution of the electric guitar, this 8-string multi-scale model unlocks the possibilities of an instrument by accommodating two scale lengths on one fingerboard, thus enhancing overall playing comfort while improving tension and intonation.
The DKAF8 MS features a 26"-28" multi-scale length, mahogany body with an arched top, bolt-on one-piece maple neck with graphite reinforcement and scarf joint and a 12"-16" compound radius laurel fingerboard with 24 jumbo frets and offset dot inlays.
Dual Jackson uncovered 8-string blade humbucking pickups power this metal beast and can be shaped by a three-way toggle switch and single volume and tone controls. To help improve intonation, the guitar has been equipped with Jackson designed individual bridge saddles, staggered to accommodate for the two scale lengths.
The behemoth DKAF8 MS boasts plenty of refined style with a Stained Mahogany finish, black hardware and Jackson 4x4 AT-1 black headstock.
Features
- 26"-28" scale
- Mahogany Dinky® body with arched top
- One-piece bolt-on maple neck with graphite reinforcement and scarf joint
- 12"-16" compound radius laurel fingerboard with 24 jumbo frets and offset white dot inlays
- Jackson® uncovered 8-string blade humbucking pickups
- Three-way toggle switch, single volume and single tone controls
- Staggered individual bridge saddles
- Available in Gloss Black with black hardware
- Jackson® 4x4 AT-1
Specifications
| Body Material | Mahogany |
| Body Shape | Dinky® |
| Body Finish | Satin |
| Neck Material | Maple |
| Neck Construction | Bolt-On with Graphite Reinforcement and Scarf Joint |
| Neck Finish | Satin |
| Scale Length | 26" - 28" Multi-Scale (660 mm - 711 mm) |
| Fingerboard | Laurel |
| Fingerboard Radius | 12" to 16" Compound Radius (304.8 mm to 406.4 mm) |
| Number of Frets | 24 |
| Fret Size | Jumbo |
| Nut Material | Black Plastic |
| Nut Width | 2.165" (55 mm) |
| Position Inlays | Offset Pearloid Dot |
| Truss Rod | Dual-Action |
| Headstock | Jackson® AT-1 4x4 (4 Over/4 Under) |
| Pickup Configuration | HH |
| Bridge Pickup | Jackson® Uncovered 8-String Blade Humbucking |
| Neck Pickup | Jackson® Uncovered 8-String Blade Humbucking |
| Controls | Volume, Tone |
| Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup |
| Bridge | Staggered Individual Saddles |
| Tuning Machines | Jackson® Sealed Die-Cast |
| Hardware Finish | Black |
| Control Knobs | Dome-Style |
| Strings | Nickel Plated Steel (.010-.074 Gauges) |
| Orientation | Right-Hand |
| Case/Gig Bag | Optional SLAT 7/8 String Gig Bag (p/n 299-1513-106) |
